Savio College Gymnasium

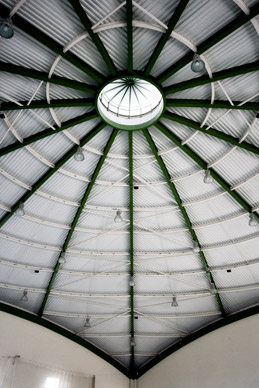

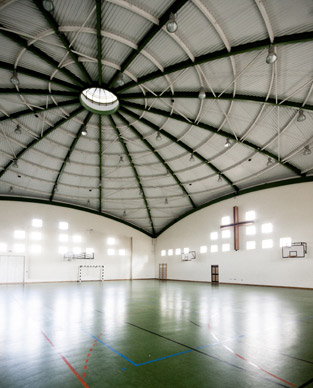

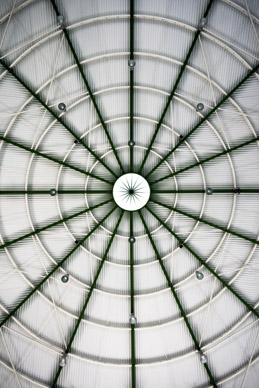

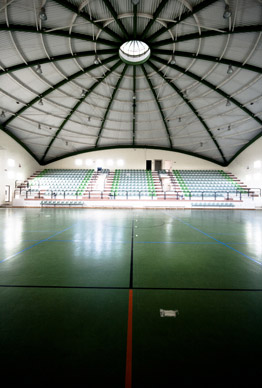

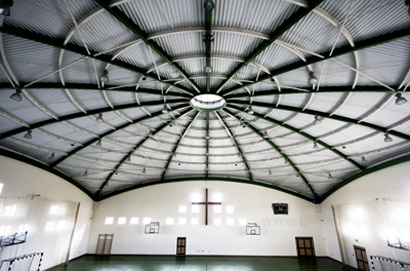

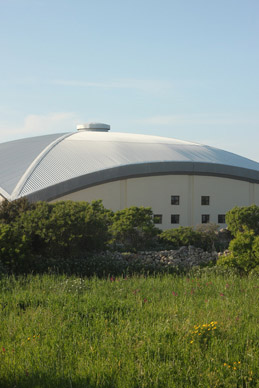

The structural design of the steel dome structure was commissioned for by the steel fabricator. The analysis consists of a 3-hinged arched dome construction of 35m span, with a central tension ring taking a light lantern. The structure was resin bolted to the existing encircling reinforced concrete ring beam.

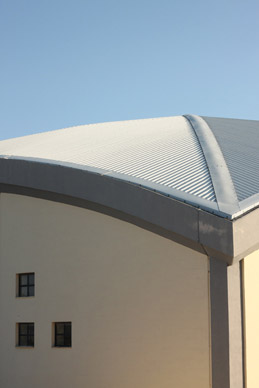

The circular steel sections were shipped over from the UK with built up curved insulated panels connected to the structural framework.
